Asrock B650M PG RIPTIDE, AMD B650, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, RGB, 2x M.2

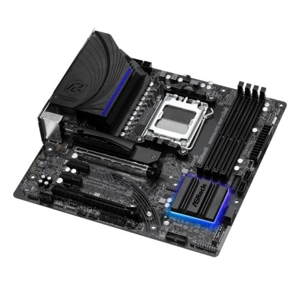

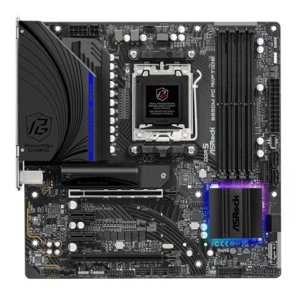

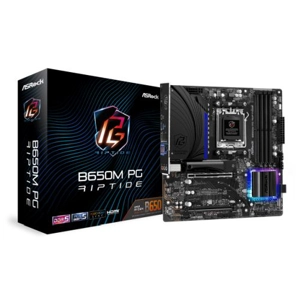

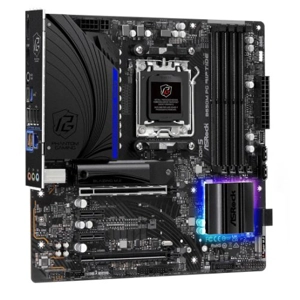

B650M PG Riptide

Supports AMD Ryzen™ 7000 Series Processors
12+2+1 Phase Power Design, Dr.MOS
4 x DDR5 DIMMs, supports up to 6200+(OC)
1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
Graphics Output Options: 1 HDMI, 1 DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 4 SATA3
1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
Realtek 2.5G LAN

Motherboard TypeDesktopForm FactorMicro ATXSocketAMD AM5ChipsetAMD B650CPU SupportClick here for CPU supportRAM TechnologyDDR5 (Dual Channel)RAM Slots4 x DIMMRAM SpeedsUp to 6200+(OC)Maximum Memory128GBGraphicsIntegrated Graphics*

*Graphics specifications may vary between CPU typesGraphics Ports1 x HDMI
1 x DisplayPortMulti-GPU SupportSupports AMD CrossFirePCI/PCI Express1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
2 x PCIe 3.0 x1Storage4 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIeRAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devicesWireless-LAN2.5GB LANAudio7.1 CH HD Audio (Realtek ALC897 Audio Codec)USB Ports Supported1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at back) (Lightning Gaming Ports)
4 x USB 3.2 Gen1 (at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)

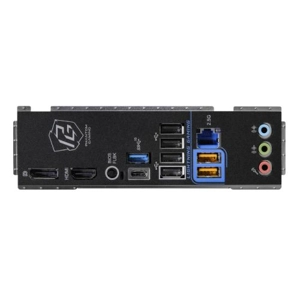

1 x Front USB 3.2 Gen1 Type-C connectorBack Panel I/O Ports1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1 (Lightning Gaming Ports)
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio JacksInternal I/O Connectors1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC 2 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen1Accessories1 x User Manual
2 x SATA Data Cables
2 x Screws for M.2 Sockets
1 x Standoff for M.2 SocketAdditional FeaturesSee OverviewPackage TypeRetailPackage Weight1.0100 kg
