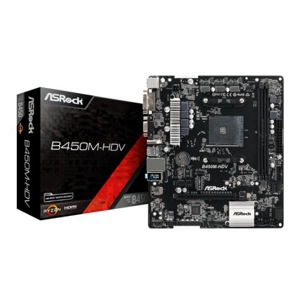

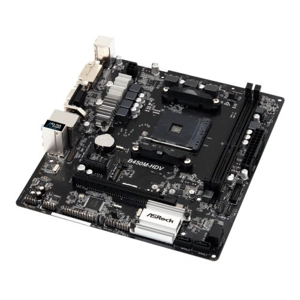

Asrock B450M-HDV R.40, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

AMD AM4 Socket
Supports DDR4 3200+ (OC)
1 PCIe 3.0 x16, 1 PCIe 2.0 x1
Graphics Output: HDMI, DVI-D, D-Sub
Supports Triple Monitor
7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
6 USB 3.1 Gen1 (2 Front, 4 Rear)
Realtek Gigabit LAN

PLEASE NOTE:

Ryzen 4100, 4500, 4600G, 5500, 5700X, 5800X3D,
5600G & 5700G CPUs may require a BIOS update

AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.

Motherboard TypeDesktopForm FactorMicro ATXSocketAMD AM4ChipsetAMD B450CPU SupportClick here for CPU supportRAM TechnologyDDR4 (Dual Channel)RAM Slots2 x DIMMRAM Speeds3200+(OC)/2933/2667/2400/2133 MHzMaximum Memory32GBGraphicsIntegrated AMD Radeon Vega Series Graphics in Ryzen Series APUGraphics Ports1 x VGA
1 x DVI-D
1 x HDMIMulti-GPU Support-PCI/PCI ExpressRyzen CPUs (Summit & Pinnacle Ridge):
1 x PCIe 3.0 x16

Ryzen CPUs (Raven Ridge):
1 x PCIe 3.0 x16
1 x PCIe 2.0 x1PCI-Storage4 x SATA III
1 x Ultra M.2 2242/2260/2280 - SATA & PCIeRAIDRAID 0, 1, 10Wireless-LANGB LANAudio7.1 CH HD Audio (Realtek ALC887 Audio Codec)USB Ports Supported6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)

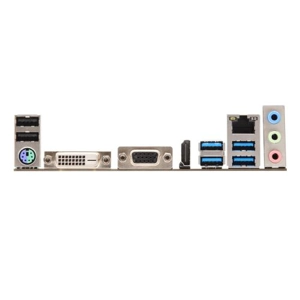

6 x USB 2.0 (2 at back, 4 at mid-board)Back Panel I/O Ports1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
4 x USB 3.1 Gen1
1 x RJ-45 LAN
HD Audio JacksInternal I/O Connectors1 x Print Port
1 x COM Port
1 x TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.1 Gen1AccessoriesQuick Installation Guide
Support CD
I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 SocketAdditional FeaturesSee OverviewPackage TypeRetailPackage Weight0.8000 kgWarranty3 Year Replacement Warranty
