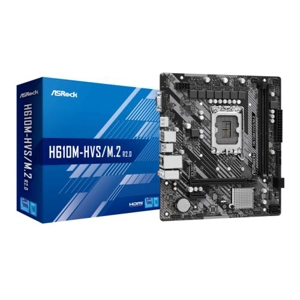

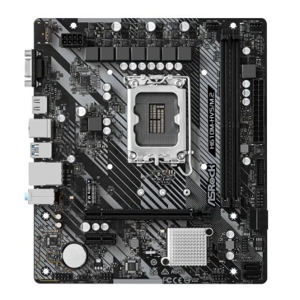

Asrock H610M-HVS/M.2 R2.0, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 1x M.2

H610M-HVS/M.2 R2.0


Supports 12th Gen Intel® Core™ Processors (LGA1700)
7 Phase Power Design
Supports DDR4 3200MHz
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Ultra M.2 (PCIe Gen3 x4)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN




Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.



Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Motherboard TypeDesktopForm FactorMicro ATXSocketIntel 1700ChipsetIntel H610CPU SupportClick here for CPU supportRAM TechnologyDDR4 (Dual Channel)RAM Slots2 x DIMMRAM SpeedsUp to 3200 MHzMaximum Memory64GBGraphicsIntegrated Graphics*

*Graphics specifications may vary between CPU typesGraphics Ports1 x VGA
1 x HDMIPCI/PCI Express1 x PCIe 4.0 x16
1 x PCIe 3.0 x1Storage4 x SATA III
1 x M.2 (2242/2260/2280) - PCIeWireless-LANGB LANAudio7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)USB Ports Supported4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)

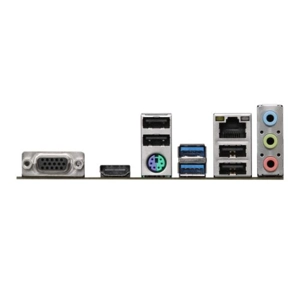

6 x USB 2.0 (4 at back, 2 at mid-board)Back Panel I/O Ports1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
HD Audio JacksInternal I/O Connectors1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1AccessoriesQuick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 SocketAdditional FeaturesSee OverviewPackage TypeRetailPackage Weight0.8040 kg
