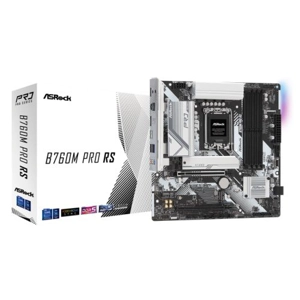

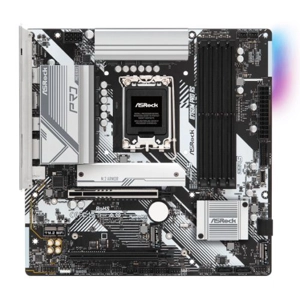

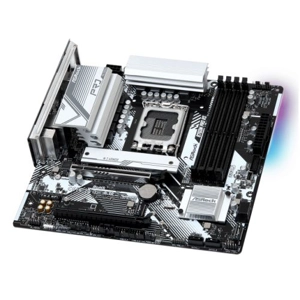

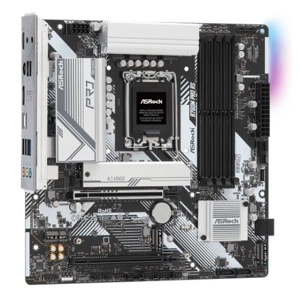

Asrock B760M PRO RS, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, RGB, 3x M.2

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
7+1+1 Power Phase, Dr.MOS for VCore+GT
Supports DDR5 7200MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
Dragon 2.5G LAN
Supports ASRock Auto Driver Installer

Motherboard TypeDesktopForm FactorMicro ATXSocketIntel 1700ChipsetIntel B760CPU SupportClick here for CPU supportRAM TechnologyDDR5 (Dual Channel)RAM Slots4 x DIMMRAM SpeedsUp to 7200+(OC)Maximum Memory192GBGraphicsIntegrated Graphics*

*Graphics specifications may vary between CPU typesGraphics Ports1 x HDMI
1 x DisplayPortPCI/PCI Express1 x PCIe 5.0 x16 (supports x16 mode)
1 x PCIe 3.0 x16 (supports x4 mode)Storage4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2280) - PCIe
1 x M.2 (2280) - PCIeRAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesWireless-LAN2.5GB LANAudio7.1 CH HD Audio (Realtek ALC897 Audio Codec)USB Ports Supported1 x USB 3.2 Gen1 Type-C (at back)
5 x USB 3.2 Gen1 (3 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

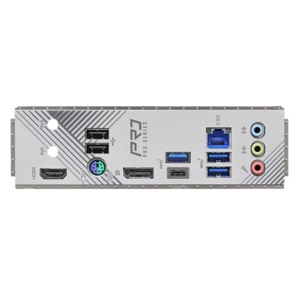

1 x Front Panel Type-C USB 3.2 Gen1 HeaderBack Panel I/O Ports2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x RJ-45 LAN
HD Audio JacksInternal I/O Connectors1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC
2 x USB 2.0 1 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen1Accessories1 x User Manual
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 SocketAdditional FeaturesSee OverviewPackage TypeRetailPackage Weight1.3000 kg

Optimized VRM Design

Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
7+1+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
6 Layer PCB - The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!





DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.






DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.






PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.






Reinforced Steel Slot [PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:

- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.






Nahimic Audio

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Polychrome RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution(PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

Pre-Installed IO Shield

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
