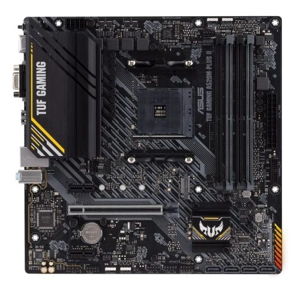

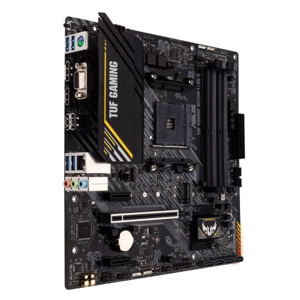

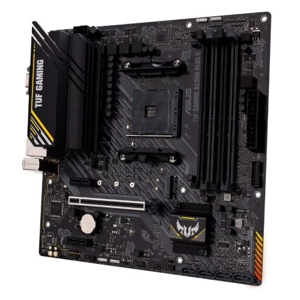

Asus TUF GAMING A520M-PLUS II, AMD A520, AM4, Micro ATX, 4 DDR4, VGA, HDMI, DP, 1x M.2

AMD A520 (Ryzen AM4) micro ATX gaming motherboard with M.2 support, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, and AURA Addressable Gen 2 headers

AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+
Made for online gaming: TUF LANGuard and TurboLAN technology
Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware




Durable. Stable. Reliable.

TUF Gaming A520M-Plus II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.





Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus II is the perfect foundation for your next high-core-count battle rig.





Easy PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.


Immersive Gaming

TUF GAMING A520M-Plus II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Motherboard TypeDesktopForm FactorMicro ATXSocketAMD AM4ChipsetAMD A520CPU SupportClick here for CPU supportRAM TechnologyDDR4 (Dual Channel)RAM Slots4 x DIMMRAM SpeedsUp to 4866(OC)Maximum Memory128GBGraphicsIntegrated Graphics Processor*

Graphics specifications may vary between CPU typesGraphics Ports1 x VGA
1 x HDMI
1 x DisplayPortPCI/PCI Express1 x PCIe 3.0 x16 (supports x16 mode)
2 x PCIe 3.0 x1Storage4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIeRAIDRAID 0, 1, 10Wireless-LANGB LANAudioRealtek ALC887/897 7.1 Surround Sound High Definition Audio CODECUSB Ports Supported6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)

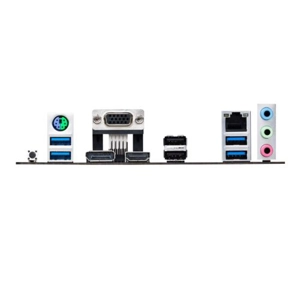

5 x USB 2.0 (2 at back, 3 at mid-board)Back Panel I/O Ports4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x BIOS FlashBack button
1 x DisplayPort
1 x HDMI
1 x D-Sub
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse comboInternal I/O Connectors1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
2 x AURA Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
1 x COM Port 1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System PanelAccessories2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x TUF Gaming sticker
1 x Support DVD
1 x TUF Certification card
1 x User manualAdditional FeaturesSee OverviewPackage TypeRetailPackage Weight1.3000 kg
