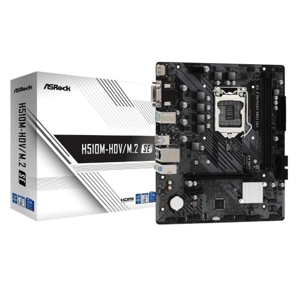

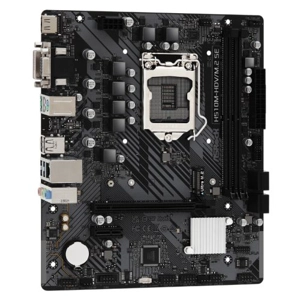

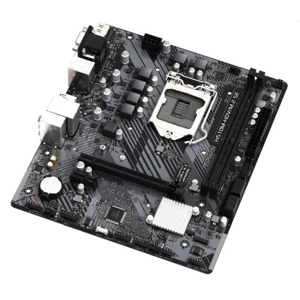

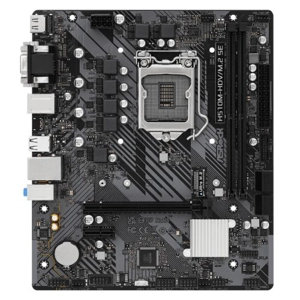

Asrock H510M-HDV/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

H510M-HDV/M.2 SE

Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
4+1+1 Power Phase Design
Supports DDR4 2933 MHz*
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, DVI-D, D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
6 USB 3.2 Gen1 (2 Front, 4 Rear)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer





Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

Motherboard TypeDesktopForm FactorMicro ATXSocketIntel 1200 - Rocket LakeChipsetIntel H510CPU SupportClick here for CPU supportRAM TechnologyDDR4 Dual Channel
Supports non-ECC, un-buffered memory
Supports ECC UDIMM modules (operate in non-ECC mode)RAM Slots2 x DIMMRAM SpeedsUp to 2933 MHzMaximum Memory64GBGraphicsIntegrated Graphics*

*Graphics specifications may vary between CPU typesGraphics Ports1 x VGA
1 x DVI-D
1 x HDMIPCI/PCI Express1 x PCIe 4.0 x16
1 x PCIe 3.0 x1Storage4 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesWireless-LANGB LANAudio7.1 CH HD Audio (Realtek ALC897 Audio Codec)USB Ports SupportedRear:
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Front:
2 x USB 3.2 Gen1 Type-A

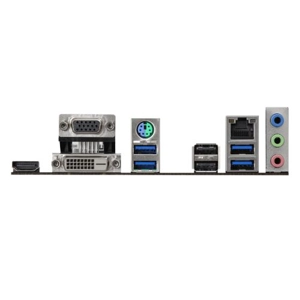

4 x USB 2.0Back Panel I/O Ports1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio JacksInternal I/O Connectors1 x COM Port
1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1Accessories1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 SocketAdditional FeaturesSee OverviewPackage TypeRetailPackage Weight0.7500 kg
