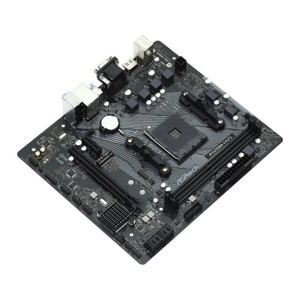

Asrock A520M-HVS, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, M.2

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
6 Phase Power Design
Supports DDR4 4733+ (OC)
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
6 x USB 2.0(2 x Rear, 4 x Front)
Realtek Gigabit LAN


Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Motherboard TypeDesktopForm FactorMicro ATXSocketAMD AM4ChipsetAMD A520CPU SupportClick here for CPU support

*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUsRAM TechnologyDDR4 (Dual Channel)RAM Slots2 x DIMMRAM Speeds4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHzMaximum Memory64GBGraphicsIntegrated Graphics Processor*

Graphics specifications may vary between CPU typesGraphics Ports1 x VGA
1 x HDMIMulti-GPU Support-PCI/PCI Express1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode)
1 x PCIe 3.0 x1Storage4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIeRAIDRAID 0, 1, 10Wireless-LANGB LANAudio7.1 CH HD Audio (Realtek ALC887 Audio Codec)USB Ports Supported6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)

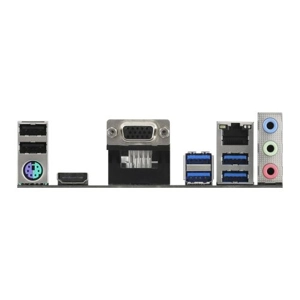

6 x USB 2.0 (2 at back, 4 at mid-board)Back Panel I/O Ports1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio JacksInternal I/O Connectors1 x SPI TPM
1 x COM Port
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1Accessories2 x SATA Data Cables
1 x Screw for M.2 SocketAdditional FeaturesSee OverviewPackage TypeRetailPackage Weight0.7920 kg
