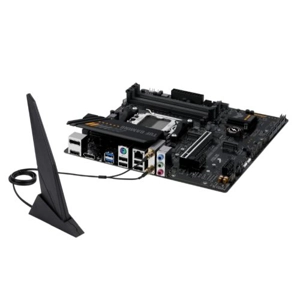

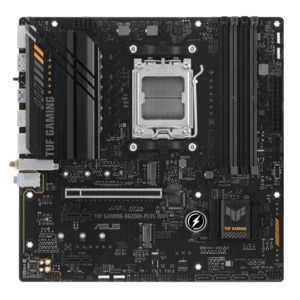

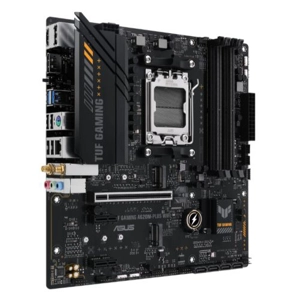

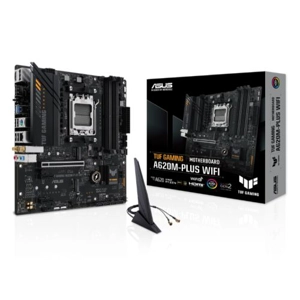

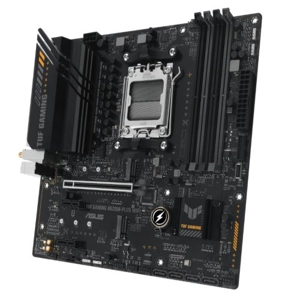

Asus TUF GAMING A620M-PLUS WIFI, AMD A620, AM5, Micro ATX, 4 DDR5, HDMI, 2 DP, Wi-Fi 6, 2.5G LAN, PCIe4, 2x M.2

ASUS TUF GAMING A620M-PLUS WIFI takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability

Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

Motherboard TypeDesktopForm FactorMicro ATXSocketAMD AM5ChipsetAMD A620CPU SupportClick here for CPU supportRAM TechnologyDDR5 (Dual Channel)RAM Slots4 x DIMMRAM SpeedsUp to 6400+(OC)Maximum Memory128GBGraphicsIntegrated Graphics*

*Graphics specifications may vary between CPU typesGraphics Ports1 x HDMI
2 x DisplayPortPCI/PCI Express1 x PCIe 4.0 x16
2 x PCIe 3.0 x1Storage4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIeRAIDAMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10WirelessWi-Fi 6
1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3LAN2.5GB LANAudioRealtek 7.1 Surround Sound High Definition Audio CODECUSB Ports Supported2 x USB 3.2 Gen1 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)

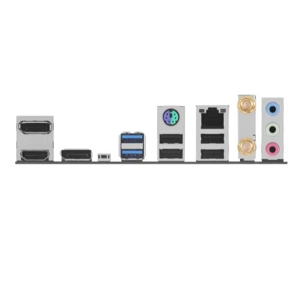

1 x Front USB 3.2 Gen1 Type-C connectorBack Panel I/O Ports2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
2 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse comboInternal I/O Connectors1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS 1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x 10-1 pin System PanelAccessories2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x TUF Gaming sticker
1 x Screw package for M.2 SSD
1 x TUF Certification card
1 x User guideAdditional FeaturesSee OverviewPackage TypeRetailPackage Weight1.5400 kgWarranty3 Years
