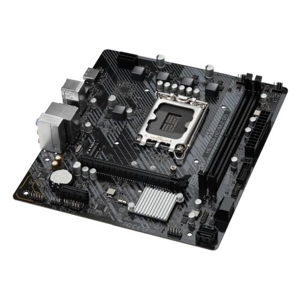

Asrock H610M-H2/M.2 D5, Intel H610, 1700, Micro ATX, 2 DDR5, 2 HDMI, GB LAN, PCIe4, 1x M.2

Motherboard TypeDesktopForm FactorMicro ATXSocketIntel 1700ChipsetIntel H610CPU SupportClick here for CPU supportRAM TechnologyDDR5 (Dual Channel)
Supports Intel XMP 3.0RAM Slots2 x DIMMRAM SpeedsUp to 5600 MHzMaximum Memory128GBGraphicsIntegrated Graphics*

*Graphics specifications may vary between CPU typesGraphics Ports2 x HDMI 2.1PCI/PCI Express1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 3.0 x1Storage4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 3.0 x4Wireless-LANGB LANUSB Ports SupportedRear:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Front:
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0Back Panel I/O Ports1 x PS/2 Mouse/Keyboard
2 x HDMI
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x RJ-45 LAN
HD Audio JacksInternal I/O Connectors1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1Accessories1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 SocketAdditional FeaturesSee OverviewPackage TypeRetailPackage Weight0.7100 kgWarranty3 Year Replacement Warranty

H610M-H2/M.2 D5

Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
3+1+1 Phase Power Design
Supports DDR5 5600MHz*
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: 2 HDMI
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer





Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.





Ultra M.2 32Gb/s (PCIe Gen3 x4)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.





Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!





Dual HDMI Outputs

Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.





HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
