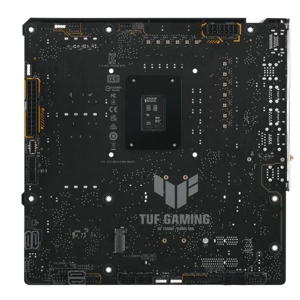

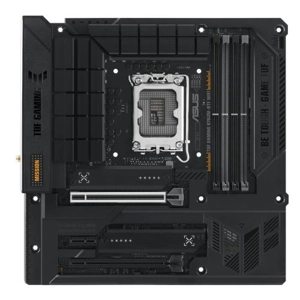

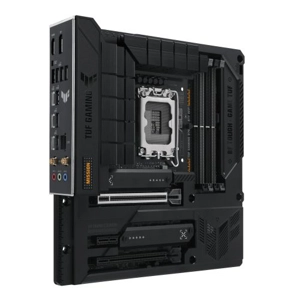

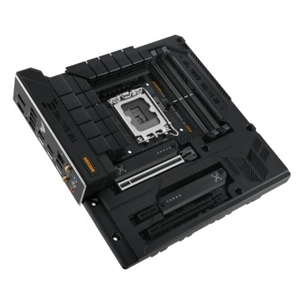

Asus TUF GAMING B760M-BTF WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, 3x M.2 *Requires a BTF Compatible Chassis*

Motherboard TypeDesktopForm FactorMicro ATXSocketIntel 1700ChipsetIntel B760CPU SupportClick here for CPU supportRAM TechnologyDDR5 (Dual Channel)
Supports Intel Extreme Memory Profile (XMP)
OptiMem IIRAM Slots4 x DIMMRAM SpeedsUp to 7200(OC)Maximum Memory192GBGraphicsIntegrated Graphics*
*Graphics specifications may vary between CPU typesGraphics Ports1 x HDMI
1 x DisplayPortPCI/PCI Express1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x1Storage4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2280) - PCIe 4.0 x4RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10WirelessWi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2LAN2.5GB LANAudioRealtek 7.1 Surround Sound High Definition Audio CODECUSB Ports SupportedRear:
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)
3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)
4 x USB 2.0

Front:
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1

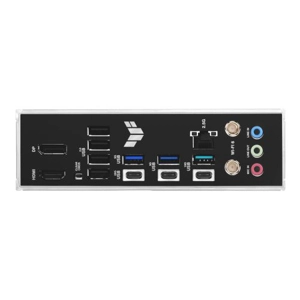

4 x USB 2.0Back Panel I/O Ports1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)
3 x USB 3.2 Gen1 (2 Type-A, 1 USB Type-C)
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x Clear CMOS buttonInternal I/O Connectors1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 3 x Addressable Gen2
1 x Aura RGB
1 x COM Port
1 x Front Panel Audio
1 x 10-1 pin System Panel
1 x Thunderbolt (USB4)Accessories2 x SATA 6Gb/s cables

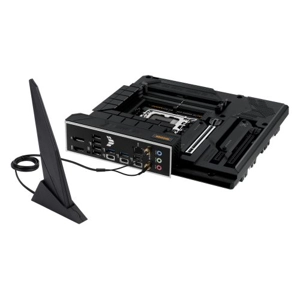

1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x User guideAdditional FeaturesNOTE: This motherboard requires a chassis that is BTF compatible
Click here to learn more about Asus BTFPackage TypeRetailPackage Weight1.8000 kgWarranty3 Years
