Features

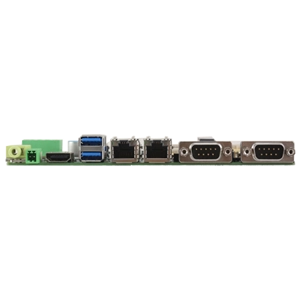

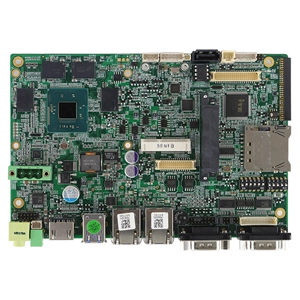

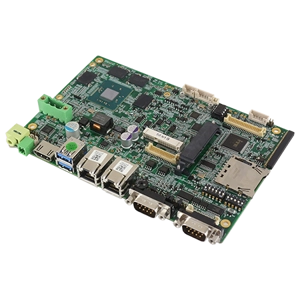

SBC-7111
4” EPIC, Onboard Intel Atom E3845 (1.91GHz) / Celeron N2930 (1.83GHz) / Celeron N2807 (1.58GHz) Processor,
Onboard 4GB/8GB DDR3L, VGA/HDMI/LVDS
EPIC
Intel Atom E3845 (1.91GHz) / Celeron N2930(1.83GHz)
/Celeron N2807(1.58GHz) Processor
Onboard DDR3L 4GB/8GB 1333MHz
1 x 18/24-bit Dual Channel LVDS
Wide Operating Temperature, Support -20°C~70°C
Wide Range DC 9~36V Input
1 x SBC-7111 4" SBC
1 x CR2477 Battery


System
Form Factor 4’’ EPIC
Processor
Onboard Intel Atom E3845 Processor (2M Cache,
1.91GHz) (optional)
Onboard Intel Celeron N2930 Processor (2M Cache,
1.83GHz) (default)
Onboard Intel Celeron N2807 Processor (2M Cache,
1.58GHz) (optional)
System Chipset SoC
System Memory Onboard 4GB/8GB DDR3L 1333MHz
BIOS AMI/UEFI BIOS
RTC Real-time clock
I/O
Super I/O ITE IT8518E
Fintek F81216AD
Ethernet 2 x GbE ports(RJ45) with Intel I210 Controller
USB
2 x USB 3.0 external stack ports
1 x USB 2.0 Pin header via CN1
1 x USB 2.0 Pin header via CN2
2 x USB 2.0 Pin header via CN3
1 x USB 2.0 for mini PCIe
Serial
1 x RS-232/RS422/RS485 (COM1), DB-9 Connector on I/O,
pin 9 with 5V/12V Ring select
1 x RS-232(COM2) , DB-9 Connector on I/O, pin 9 with
5V/12V Ring select
2 x UART(COM3,COM4) via CN3 (expansion connect)
1 x RS-422/485 pin header (COM5, COM6) via CN2
GPIO 8-bit digital I/O by header (4 x DI, 4 x DO)
Storage
1 x SATA2 connectors, 7-Pin (optional)
1 x SATA2 connectors, 7+15-Pin
1 x Micro SD Slot
Audio 1 x Stack Audio Jack, Realtek ALC888S, Line-out
2 x 6-Pin header Line-in, Line-out, MIC
Smart Battery Support 3 Serial Li battery by 10-Pin header (BAT2)
Battery 1 x 2-Pin header support CR2477 (1000mAH)
Watchdog Timer Watchdog timeout can be programmable by software
support 1~255 sec
Display
Controller Intel HD Graphics Series
VGA Interface 2 x 6-Pin header
LVDS Interface 1 x 18/24-bit dual channel LVDS
HDMI Interface 1 x HDMI
Resolution
Up to 1920 x 1200 for VGA
Up to 1920 x 1200 for HDMI
Up to 1920 x 1200 for LVDS
Mechanical & Environment
Board Size (L x M) 170 mm x 113 mm
Gross Weight 0.5 kg
Operating Temperature -20°C~70°C (-4°F~158°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Humidity 10%~90%, non-condensing, operating
Certificate Meet RoHS 2.0/CE/FCC Class A
Expansion
Expansion 1 x mini PCIe slot
Power Management
Power Input Wide range DC 9~36V input
Power Connector 1 x 3-Pin power input connector
Ordering Information
SBC-7111
4" EPIC, Intel Atom E3845 / Celeron N2930 / Celeron
N2807 Processors SoC, onboard 4G/8G DDR3L,
18/24-bit dual channel LVDS, SBC-7111
TB-528 Series I/O Board for SBC-7111
