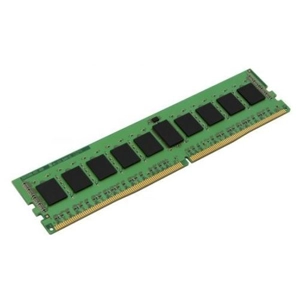

Kingston 8GB, DDR4, 2666MHz (PC4-21300), CL19, DIMM Memory

ValueRAM's KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA
components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.



Features
Power Supply: VDD=1.2V Typical
VDDQ = 1.2V Typical
VPP - 2.5V Typical
VDDSPD=2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.23” (31.25mm)
RoHS Compliant and Halogen-Free

SeriesKingston ValueRAMDDR TypeDDR4Size1 x 8GBSpeed2666 MHzCompliancePC4-21300Pins288-pinCAS LatencyCL19Data Integrity CheckNon-ECCLow VoltageNoVoltage1.2V TypicalTimings19-19-19HeatsinkNoAdditional InformationSee OverviewPackage TypeBlister PackPackage Weight0.0225 kgWarrantyLifetime
